I have read Christopher Olah's excellent LSTM article (I do not have enough reputation to post the link) and found this post and this post. Although I think I understand the mathematics and LSTMs at a high level, I find myself still confused about what exactly LSTM blocks are. What I mean, is that this:

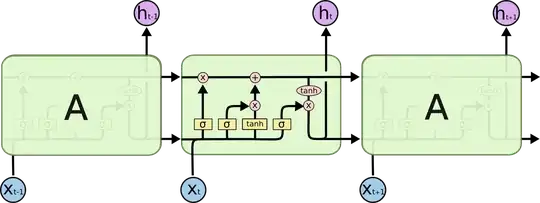

lstm layer

I know is a layer of an LSTM (across multiple times t).

I also know that LSTM networks are made of blocks (or cells, as I've seen them be referred to as):

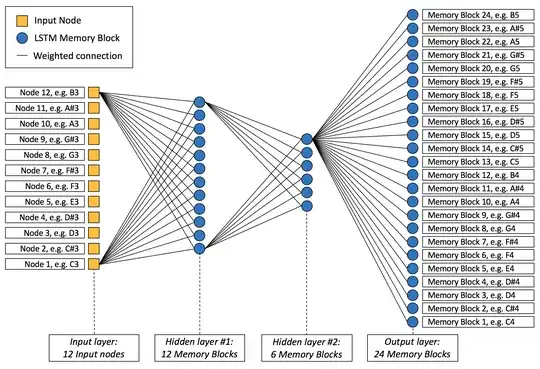

lstm network

Finally, blocks are made of units. My question is if layers (first image) exist in a network (second image), what do the 'blocks' of an LSTM look like?

Ferdi
  • 4,882
  • 7
  • 42
  • 62
MonkeySeeMonkeyCode
  • 181
  • 1
  • 2

1 Answers1

1

I usually visualize a block as the box (the cup) and the cells as the content. One block can have one or many cells, but a cell belongs to only one box.

A block controls, protects and manages (through the 3 gates) the information that is held/taken care of by the cells.

I also define one LSTM unit as (one Block + its cells) to avoid getting confused by all the different notations.
