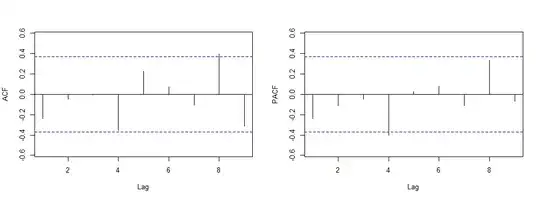

I am new to ARIMA, and I am trying to understand these lag plots. Are the following ACF and PACF suggesting that the lag of my time series is 4? If I am wrong, please help me understand these plots.

enter image description here

gung - Reinstate Monica
  • 132,789
  • 81
  • 357
  • 650
Stephen Saidani
  • 71
  • 1
  • 1
  • 2
  • 2
    The ACF and PACF suggest that there is no significant correlation to be captured by an ARMA model. The autocorrelations are within the 5% significance bands. You could test this with the test statistics in `Box.test`. You may be interested in [this post](http://stats.stackexchange.com/questions/106038/estimate-arma-coefficients-through-acf-and-pacf-inspection/). – javlacalle Jul 23 '14 at 08:56
  • 2
    It could be just noise, it might be an autoregressive term at lag 4. See also the links in the first comment [here](http://stats.stackexchange.com/questions/87538/how-to-interpret-acf-and-pacf-and-compare-with-ljung-box-result) – Glen_b Jul 23 '14 at 11:35
  • 3
    As mentioned, most likely the series can be characterised as being a white noise process. Identification, applying Box-Jenkins strategy, is a bit of an art, so _looking very hard_, it could be _possible_ to _tentatively_ entertain a seasonal model, say, a seasonal AR(1) or seasonal MA(1). Don't get me wrong, it's unlikely, but employing an iterative procedure will help you select the most appropriate model. By the way, how many observations of the series are there? Inspecting 9 lags suggests about 36 or so. With less than 50 observations, it's difficult to find structure in the ACF & PACF. – Graeme Walsh Aug 05 '15 at 14:35

1 Answers1

2

The threshold statistical significance of the autocorrelations has been noted in the comments and in another answer. What looks interesting is that the autocorrelations in Lag 4 and Lag 8 persist also in the Partial ACF.

Reality should come into play at this point: what are these data? By whatever knowledge you have on the process they measure, is it reasonable to expect that the current level should depend on Lags 4 and 8? If yes, the low estimated strength of autocorrelation is not necessarily an artifact, but an indication that said autocorrelation exists but it is low in strength.
